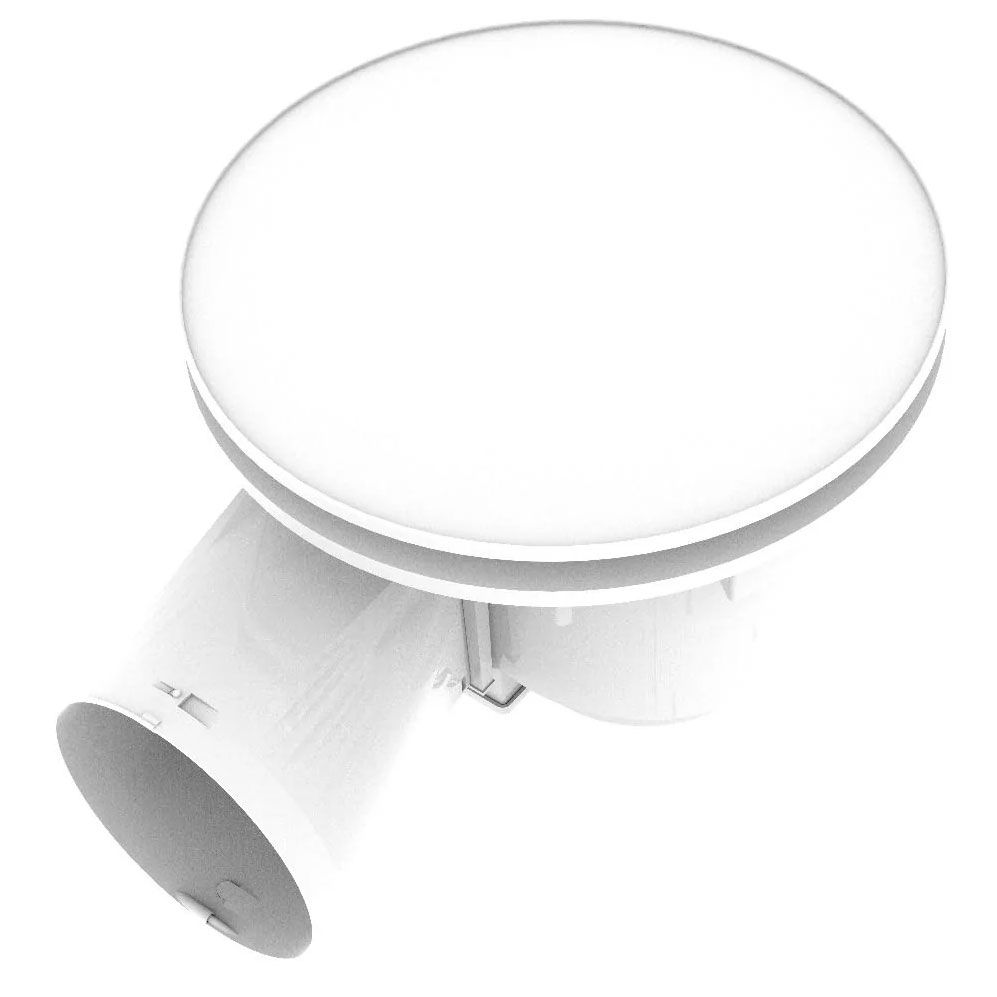

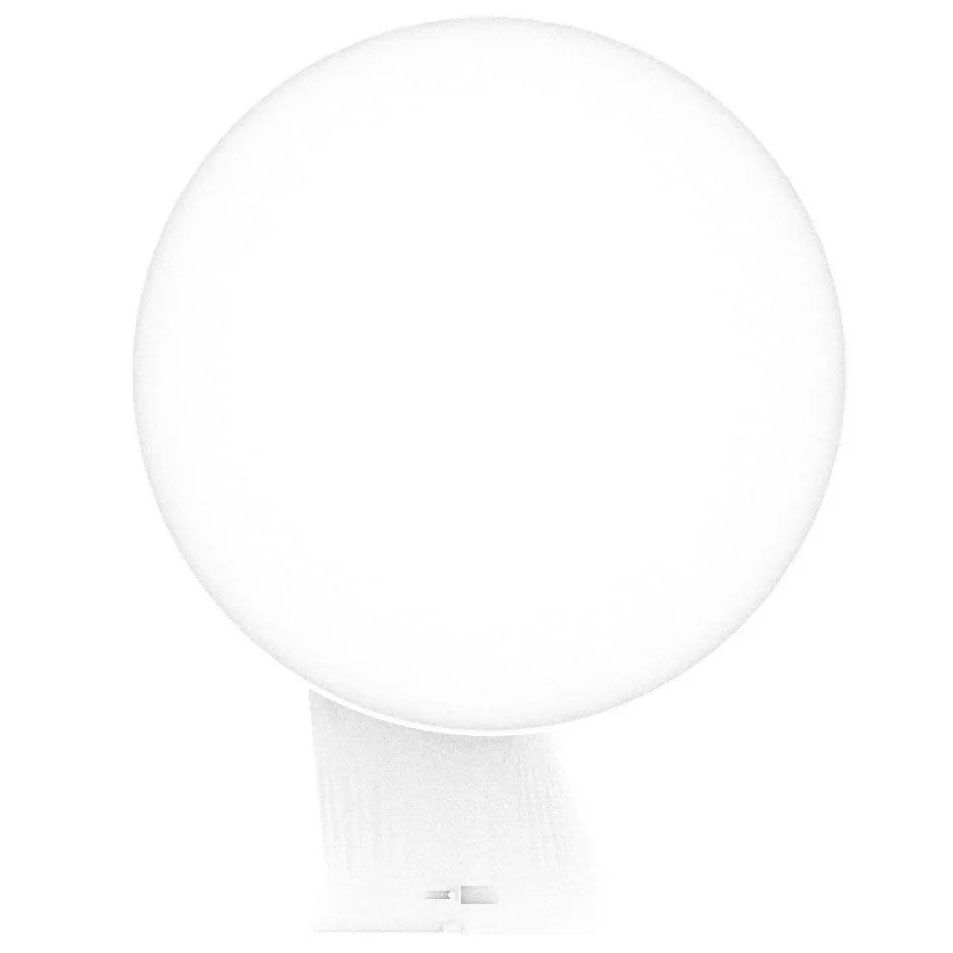

IXL Ventflo 200mm Ducted Ceiling Exhaust Extraction Fan

The Ducted Ventflo Ceiling Exhaust Fan is designed to fit a ceiling cavity with a minimum height of 210mm, and has a 125mm diameter duct outlet.

The Ducted Ventflo Fan works by drawing air from the room, and as with all exhaust fans, it is essential that sufficient air inlets exist through windows, vents or under doors.

IXL 10334 Features:

• Impeller housing design provide powerful air flow extraction
• Suitable for bathrooms, kitchens, laundries and toilets
• IP24 rated – can be installed directly above a shower
• Removable fascia for easy cleaning
• Easy plug-in installation

IXL 10334 Specifications:

• Duct Outlet: 125mm (Ducting not included)
• Clearance required above unit: 210mm
• Exhaust capacity: 280 m3/h / 77 l/s
• Fan size: 200mm
• Minimum ceiling height: 2.1m
• Maximum ceiling height: 2.4m
• Can be installed directly above a shower
• Fitted with back draught flaps
• Cutout size: 240mm
• Area suitability in room with shower: 5.83m2
